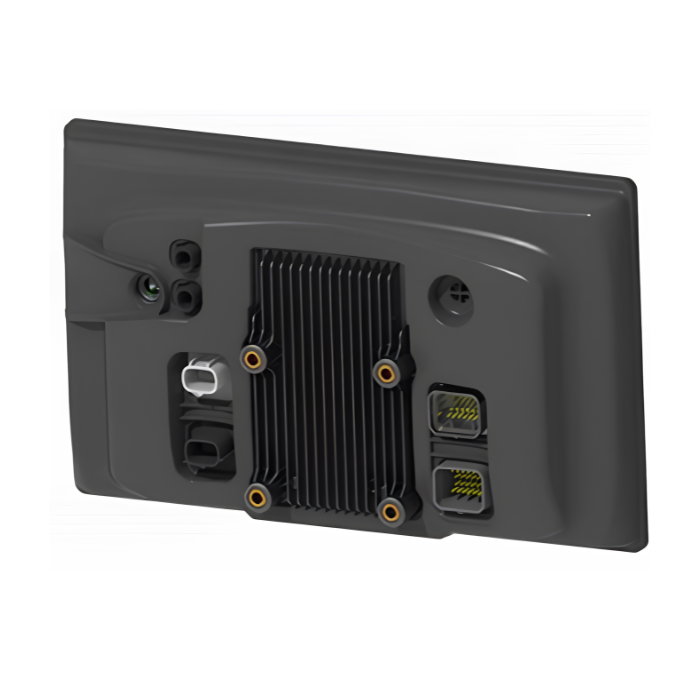

JOHN DEERE DR12 Display (12.8" Touchscreen)

John Deere Electronics reconfigurable displays offer a variety of resolutions and user control options to meet your specialized requirements. Our displays are designed to interface to the vehicle through industry standard communications protocols, including CAN and Ethernet.

HMI CAN data logger Touchscreen industrial display

Request a Quote ← Catalog

Markets: AUTOMOTIVE DEFENSE Land Defense Naval / Marine Defense Aeronautics

Key Features 3 points

FULL HD

CAPACITIVE MULTI-TOUCH

J1939

Applications 5 use cases

Automotive

Marine

Off Road

Industrial

Agriculture

Technical Specifications 8 parameters

Parameter Value

PROCESSOR	iMX8 QuadMax - 6 Core Processor : 1.6 GHz Dual Core A72 / 1.2 GHz Quad Core A53
RAM	8 GB LPDDR4
FLASH	64 GB eMMC
OPERATING VOLTAGE	12-24V
RESOLUTION	1920 x 1080
COMMUNICATION	2 CANFD (J1939 available) / 1 Digital Video via Ethernet / 2 RS232 Serial Ports / 2 USB Type A / 2 100BASE-T1 / 1 1000BASE-T
I/O	1 Alarm Low Side / 1 Internal Speaker
PROTECTION	IP65
